Description
ZyBar
ZyBar is the first patented thermal dissipation coating for hard-running headers, turbos, exhaust, manifolds, piston heads and other engine components.
Thermal Dissipation Coating for Internal Combustion Engines
ZyBar is a spray applied, single stage coating. Apply ZyBar to headers, turbo housings, down pipe, exhaust, piston heads, valve covers, intercoolers and more.
No catalyst or mixing is required.
ZyBar outperforms ceramic coatings in durability, ease of application, color stability and corrosion protection. ZyBar eliminates the need for heavy performance robbing wraps, heat tapes and heat blankets.
https://www.youtube.com/watch?v=hSnVtwlKSzs

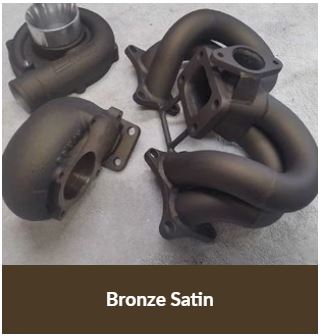

Available in these colors:
Features and Benefits
Hard, Durable Finish
ZyBar is rated to 7.9 pencil scale hardness compared to ceramic paints (pre-glass transition at 6.2).
Effective Temperature Control
Lowers radiant heat and reduces underhood temperatures by over 40%.
Outstanding Corrosion Protection
632 hours of continuous salt spray testing providing outstanding corrosion resistance.
Ultra Lightweight Thin Film Coating
Extremely lightweight at 1.5mil thickness (35-45 microns).
Accelerated Cool Down At The Track
Heat dissipation performance continues to perform after shut-down work on engine within minutes of the run.
High Temperature Performance
Rated to over 2100 degrees F (1150C) ambient and 1600 degrees F (871C) substrate surface temperature.
Ease Of Application
ZyBar bonds to itself – if you miss a spot or have dry spray – simply apply a light tack coat over that area.
ZyBar High Temperature, Heat Dissipation Coating
- A spray on thermal dissipation coating for headers, manifolds, exhaust and turbos
- ZyBar heat dissipation technology, proven in third party dynamometer testing, improves scavenging performance to increase horsepower and boost torque
- Ultra smooth, pure luster finish is non-corrosive
Features and Benefits
- Provides outstanding corrosion resistance
- Reduces radiant heat by 90%
- Reduces underhood temperatures by 40%
- Extremely lightweight at 1 mil thickness (25 microns)
- Less than 1/2 the cost of third party ceramic coaters
- Performs in 2000 + F degree temperatures!

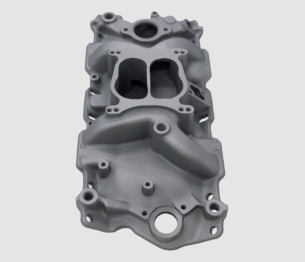

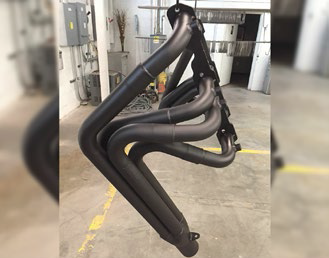

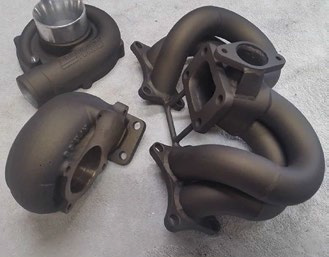

- Comes in three bold, beautiful colors: Bronze Satin, Midnight Black and Cast (Metallic Silver).
- 5 convenient product sizes to choose from
- Choose the appropriate amount for your job:
- 4 oz – coats a set of manifolds or turbo housing
- 8 oz – coats a set of small block headers
- 16 oz – coats a set of long tube headers
- 32 oz – coats entire twin tube exhaust system
Usage and Application Information
- a 32 oz can of ZyBar coats an entire twin tube exhaust system.

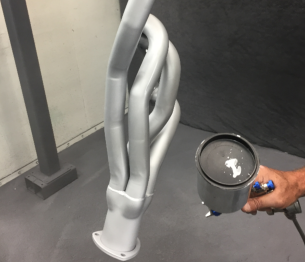

- Prep the component surface, spray on and air dry (5 days) or oven cure (450 F for 2 hours)
- Single formula with no mixing, no thinning or catalyzing required
- An experienced paint sprayer can expect is 8.1 Square feet per ounce at 1.2 mil (.0012) thickness
