Description
Baer Brakes 13″ SS4 Front Brake Kit, Black, SDZ, Std. Studs.
Part # 4301526B
Fits 1964-72 GM A-Body, 67-69 F-Body & 64-74 X-Body Cars w/OE Spindles (Also fits DSE, Heidt’s, Fatman, Ridetech & L&H Drop Spindles)

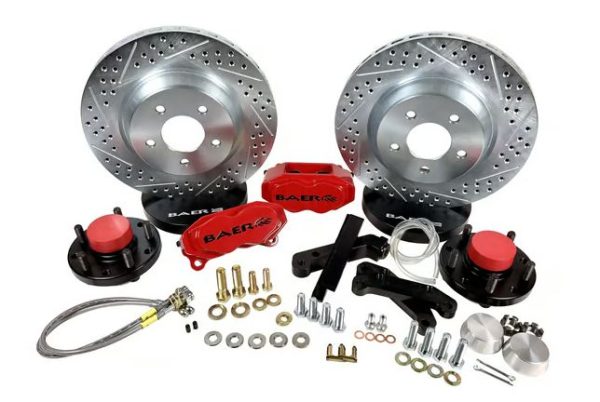

This system features the 4-piston, S4 caliper mounted to a 13″, 1 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 13″ SS4 is designed to fit most 17″ or larger wheels.
Features:
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
- Dual Seals, Dust/Weather & Pressure
- 1-Piece Slot, Drilled, Zinc-Plate Rotor
Specs
| Applications |
GM A-Body 64-72 |
|
GM F-Body 67-69 |
|
GM X-Body 64-74 |
| Axle |
Front |
| Brand |
Baer Brakes |
| Caliper |
S4 |
| Caliper Color |
Black |
| Category |
Brake |
| Disc Brake Caliper (Front) Piston Quantity |
4 |
| Disc Brake Caliper (Front) Type |
Fixed |
| Disc Brake Pad FMSI Number |
DR1 |
| Disc Brake Rotor (Front) Construction |
Vented |
| Disc Brake Rotor (Front) Outside Diameter |
13.000 IN |
| Emission Code |
6 |
| Export Description |
Brake Components |
| Fitment Notes |
w/OE, DSE, Heidt’s, Fatman, Ridetech & L&H Drop Spindles |
| Grade Type |
Performance |
| Hose Material |
Stainless Steel |
| Lug Count |
5 Lug |
| Min Wheel Dia (verify using template) |
17 IN |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
13 Inch SS4 |
| Product Type |
Front Brakes |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 – Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Rotor Thickness |
1.100 IN |
| Rotor Type |
1-Piece |
| Spindle Type |
GM AFX (also fits DSE, Heidt’s, Fatman, Ridetech & L&H 2″ drop spindles) |
| Spindles Included |
No |
| Sub Category |
Service Kits |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| System Notes |
Widens track .200″ a side on stock front drum brake cars |
| Template |
S085H |
| Title |
S4 Brake System Front |
| Wheel Lug/Bolt Pattern |
5×4.75 |
| Wheel Stud Size |
1/2-20 x 2.25 inch |
| UPC |
844165054306 |
| Part Number |
4301526B |
